Tractor

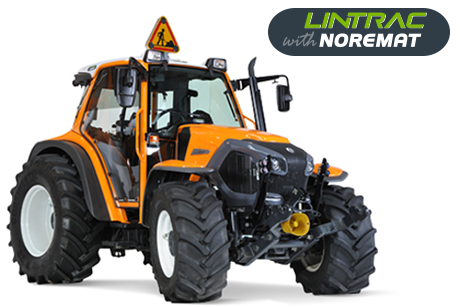

Lintrac with Noremat

Presentation

The Lintrac tractor with Noremat is configured for the maintenance of road verges.

Together, Noremat and Lindner have added the basic strengths of the Lintrac tractor a range of specific modifications in terms of visibility, comfort, manoeuvrability, versatility and productivity.

Marketed exclusively by Noremat, the Lintrac with Noremat shows the willingness to construct manoeuvrable, robust and resilient equipment for a:

More return from your equipment

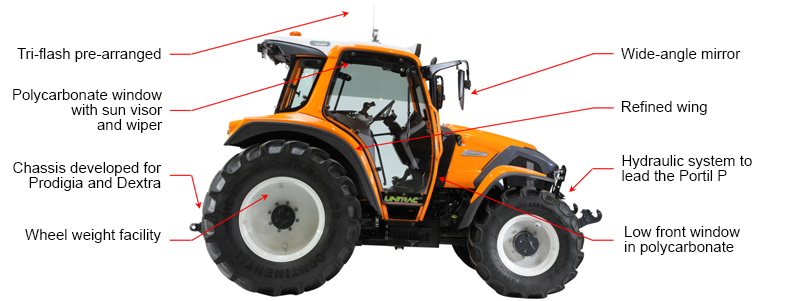

A CARRIER CONFIGURED FOR THE JOB

lintrac

ERGONOMIC CONTROL CONSOLE

Specific control console, designed by Noremat.


VISIBILITY AND COMFORT
  • View of the mulching unit.
  • Wide-angle mirror outside for a good view of the tool
  • Very accessible cab.

DRIVING

A COMPACT TRACTOR

With a wheelbase of 2.30 m


Certified stability

The Lintrac tractor is registered in the category of incline vehicles, in particular due to:

- His gravity center lower than 1 m,
- His track width of 1.60 m.


HANDLING

Half-turn on a 7 m road wide possible without maneuvers due to the 4 wheels!


“CRAB” MODE

The crab walk provides extra stability and is very important for incline work.


DESIGN

DRIVING PLEASURE

Continuously variable transmission of 0 to 40 km/h with 4 management modes to get the best consumption.


2 FRONT LINKAGE CHOICES

MOUNTING TO THE FRONT AXLE FOR BETTER GROUND COVERAGE
This linkage is attached directly to the tractor front axle , so that the tool attached to the link can flexibly follow the ups and downs of the terrain.

MOUNTING ON THE CHASSIS FOR BETTER PUSHING This linkage is attached to the chassis of the tractor. It is especially adapted to pushing forces, when using a snowplough, for example.


AN INDEPENDENT HYDRAULIC CIRCUIT FOR THE TOOL DRIVE

The powerful Bosch hydraulic system is powered by a variable displacement pump for speeds of 4l/min at 88l/min. A “free wheel hydraulic” feature protects the circuit and the mechanical systems when a tool stops.


SAFETY

AUTOMATIC FRONT PTO CUT-OFF

The front PTO is cut off automatically as soon as the linkage is in the high position, and vice versa. This is an effective way to protect individuals and to preserve the transmission units.

ELECTRIC AND HEATED MIRRORS

Comfort, but also and above all of safety


DAYLIGHTS

Beyond the esthetic aspect, the daylights contribute to the tractor visibility.

FOPS/ROPS CABIN

The LINTRAC tractor cab has FOPS/ROPS approval, and lends itself particularly well to pruning work.


THE LITTLE THINGS THAT BRING MORE
  • integrated rear lights LED
  • "Coming Home” function: lights remain on for a few moments after the tractor complete shutdown .
  • Linkage control.

Technical features

Engine

Manufacturer Perkins
Cubic capacity 3,4 l
Cylinders numbers 4
Rated power (according to ISO 14369) 75 kW - 102 ch

Transmission

Manufacturer ZF
Type TMT09 with continuous variation
Tractor speed from 20 to +40 km

Rear axle

Rear differential lock engagement Electrohydraulics
Guide for tracing 4 guide wheels Option

Front axle

Turnable front mud guards as standard
Differential front lock Self-locking standard

Tractor hydraulic circuit

Brand Bosch-Rexroth
Pump type With variable displacement piston
Available flow up to 88 l/min
Separate management between tools and transmission oils as standard

Rear 3-point linkage

Type Electronic control with traction arm and force control
Category II
External linkage control as standard

3-point front linkage

Axle front linkage Lifting capacity 2 000 kg, CAT II
Consolidated front power link Lifting capacity 2 500 kg, CAT II
Setra/ F1 linkage plate Available only on linkage consolidated
Front linkage offloading Standard to axle link, option to reinforced linkage
Front PTO 1000 RPM(clockwise) Standard to axle link, option to reinforced linkage

Cab

Right-hand side window and glazed right windscreen Polycarbonate thn. 8 mm standard
Lowered side console as standard
Windscreen wiper for side with windscreen washer as standard
Side and front sun visor as standard
Driver's seat Grammer pneumatic with belt
Passenger seat Standard with belt
Onboard information and management system IBC, standard
Regulated auto air conditioning Option
Suspended cab Option
Cab approval Rops and Fops

Braking

Type Rear multidisc brakes with hydraulic control
Hydraulic trailer brake Option
Pneumatic trailer brake Option

Electricity

Front and rear lights halogen as standard
Brake lights LED as standard
Front cover Daylight LED as standard

Weight and dimensions

Empty weight 3 750 kg
PTAC 6 400 kg
Overall length: 3 457 mm
Overall width 2 071 mm
Overall height: 2 399 mm
Wheelbase 2 264 mm
The Tools

A POLYVALENT TRACTOR

In its new configuration, Lintrac with Noremat can pull a mowing arm, a rotomulcher, as well use in winter clearing, lifting, pruning, maintenance of beaches...




MOWING AND SLASHING

PTAC increased to use a mower / brushcutter up to 5.40 m range

Lintrac fauchage

Lintrac with Noremat is exclusively designed to work with a Portil P. A continuous pumping feature has been specially integrated to use rotating tools such as weeding brushes and the cutter under rails. A free hydraulic wheel mode has also been provided to stop the tools safely.

Lintrac fauchage

WORKING ON SLOPE

Lintrac with Noremat is registered in the category of slopes vehicles. His small size allows it to sneak in everywhere and to adapt to all types of terrain.

Lintrac fauchage

PRUNING

Élagage

LIFTING

Levage

SNOW REMOVAL

Viabilité hivernale

BEACHES CLEANING

Nettoyage des plages
